Help! parts left over

[Blake Sanders]

i re placed the ignition cylinder on my 89 and had just put steering wheel back on and i discovered i left a part or two out. can anyone out there direct me to a site that i can see an exploded view so i put it back together properly? thanks!!!



[XLR8]

I can't help with the diagram you're searching for, Blake, but we have some excellent tech resources here that can and will be along soon hopefully.

I just wanted to say hello and

Jane Ann



[Schrade]

Welcome onto the boards there...

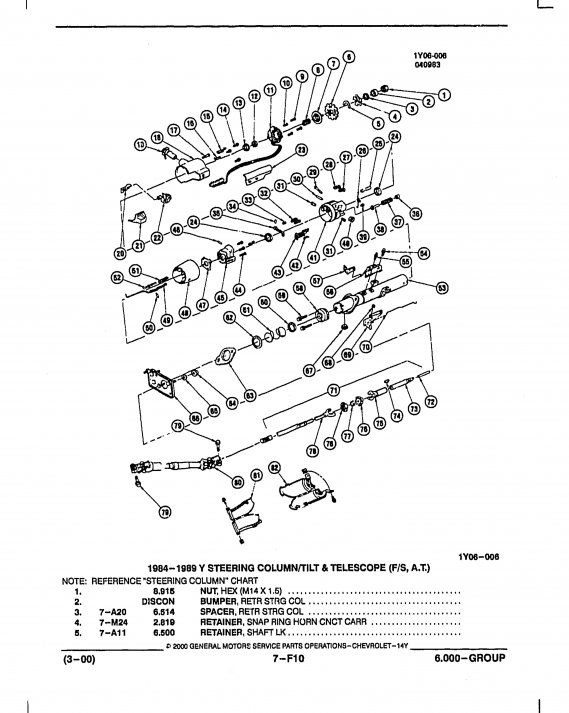

Unless someone beats me to it, I'll scan / post schematics for '90 (you might know that there's lots of paper in FSM!!! ). Stay tuned...

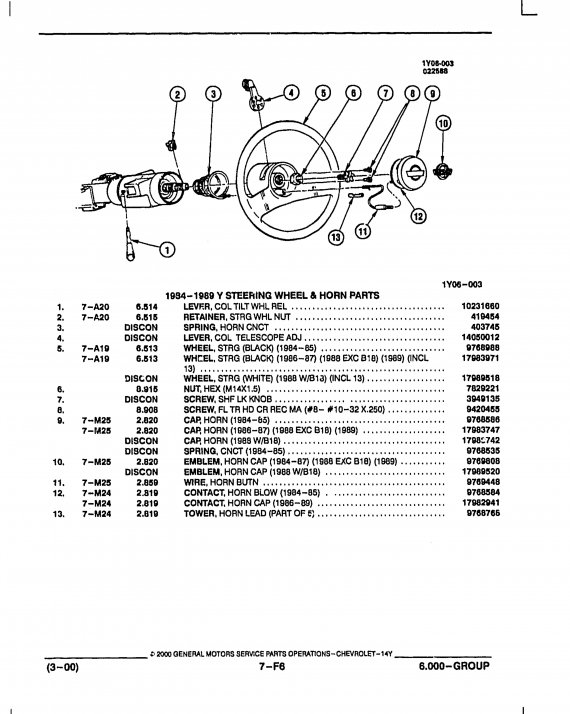

here's some stuff for '89:
(I scaled up image size, but I think they get re-sized by CAC board software - PM me an email for full size images)



[XLR8]

See what I mean, Blake?

Hopefully with these tech posts you've got enough information to resolve - or at least get you started toward resolution - of your extra parts issue.

So your next assignment is to post a thread in the New Member Forum introducing yourself and show us photos of your 89. We promise not to on it.

New Member Introductions

Jane Ann



[Schrade]

See what I mean, Blake?

Hopefully with these tech posts you've got enough information to resolve - or at least get you started toward resolution - of your extra parts issue.

So your next assignment is to post a thread in the New Member Forum introducing yourself and show us photos of your 89. We promise not to on it.

New Member Introductions

Jane Ann

Good point Boss...

My post of the GM FACTORY schematics might have errors, so we got more 'help' on it.

After all, YOURS TRULY has found in the past 2 errors in FSM's for Corvette (one '94 wiring, the other '91 ? ). Not to many of me has done THAT!!!
