Attached photos of brackets for those who need info.

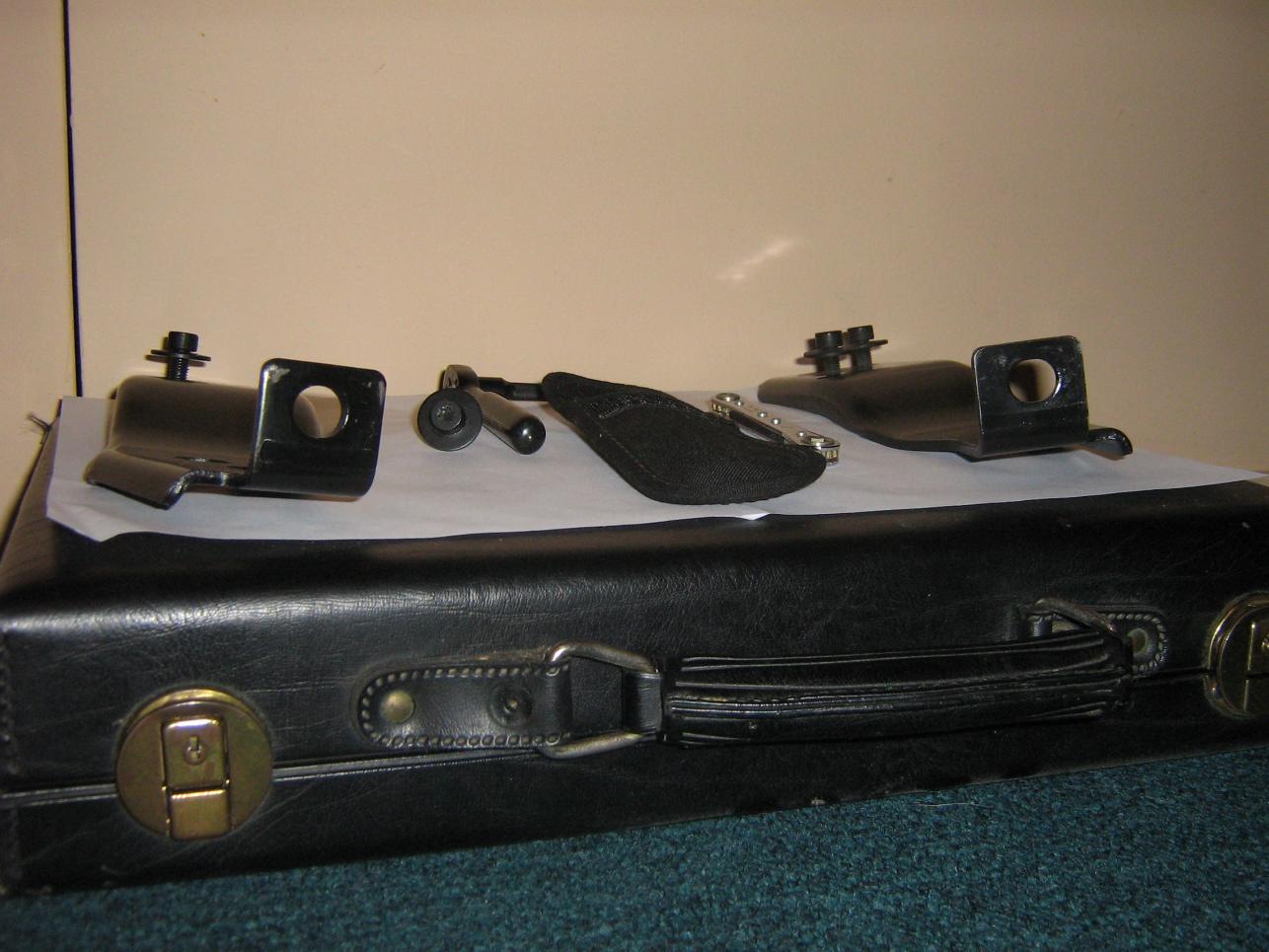

Tools and pouch from GM

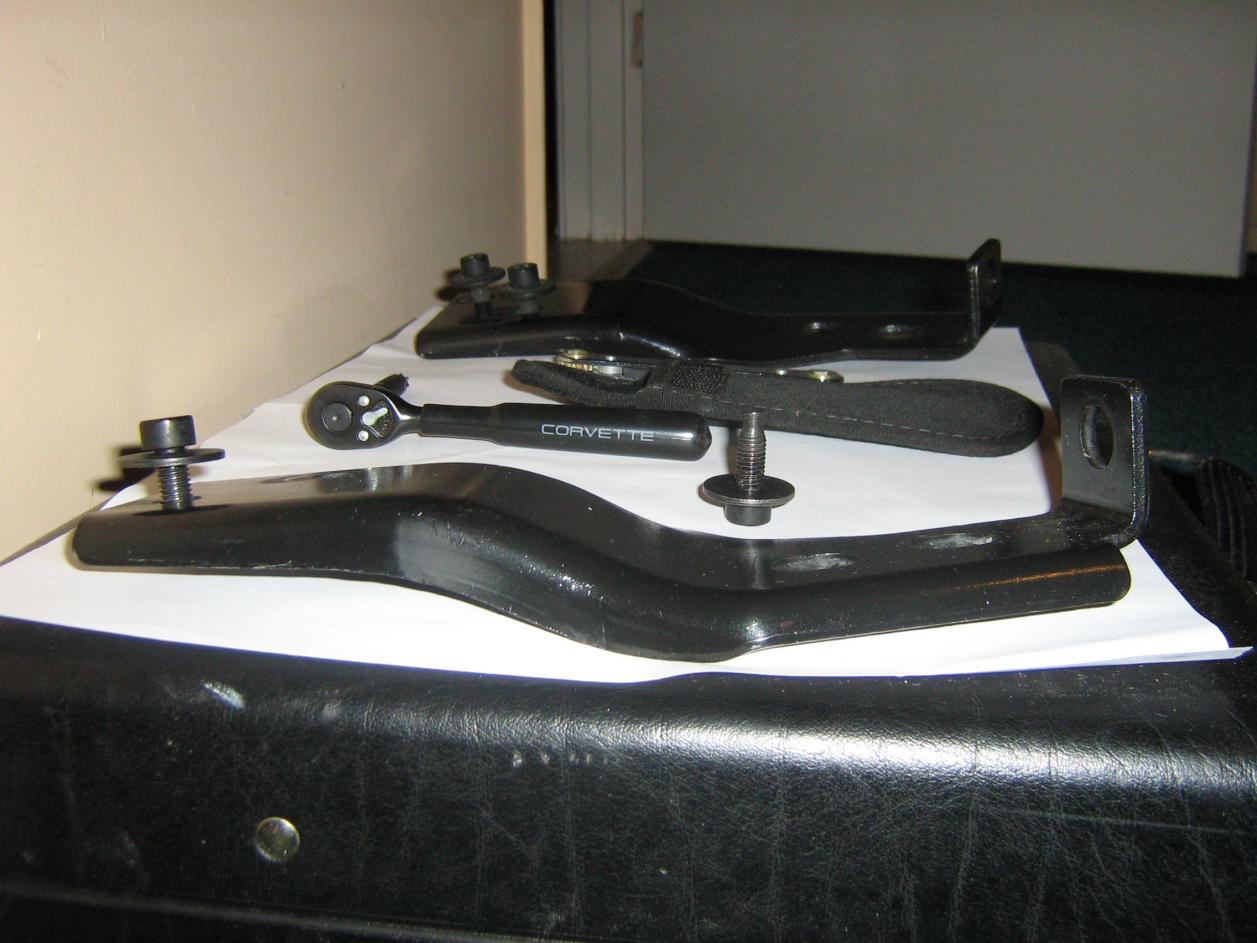

4 bolts shown / 10 bolts total (5 per side )
1 bolt out to show size
3 bolts hold bracket to side mounts on car (2 horizontal 1 facing down)
3 holes in bracket
2 bolts hold bracket to hardtop (see 3 bolts screwed in place )

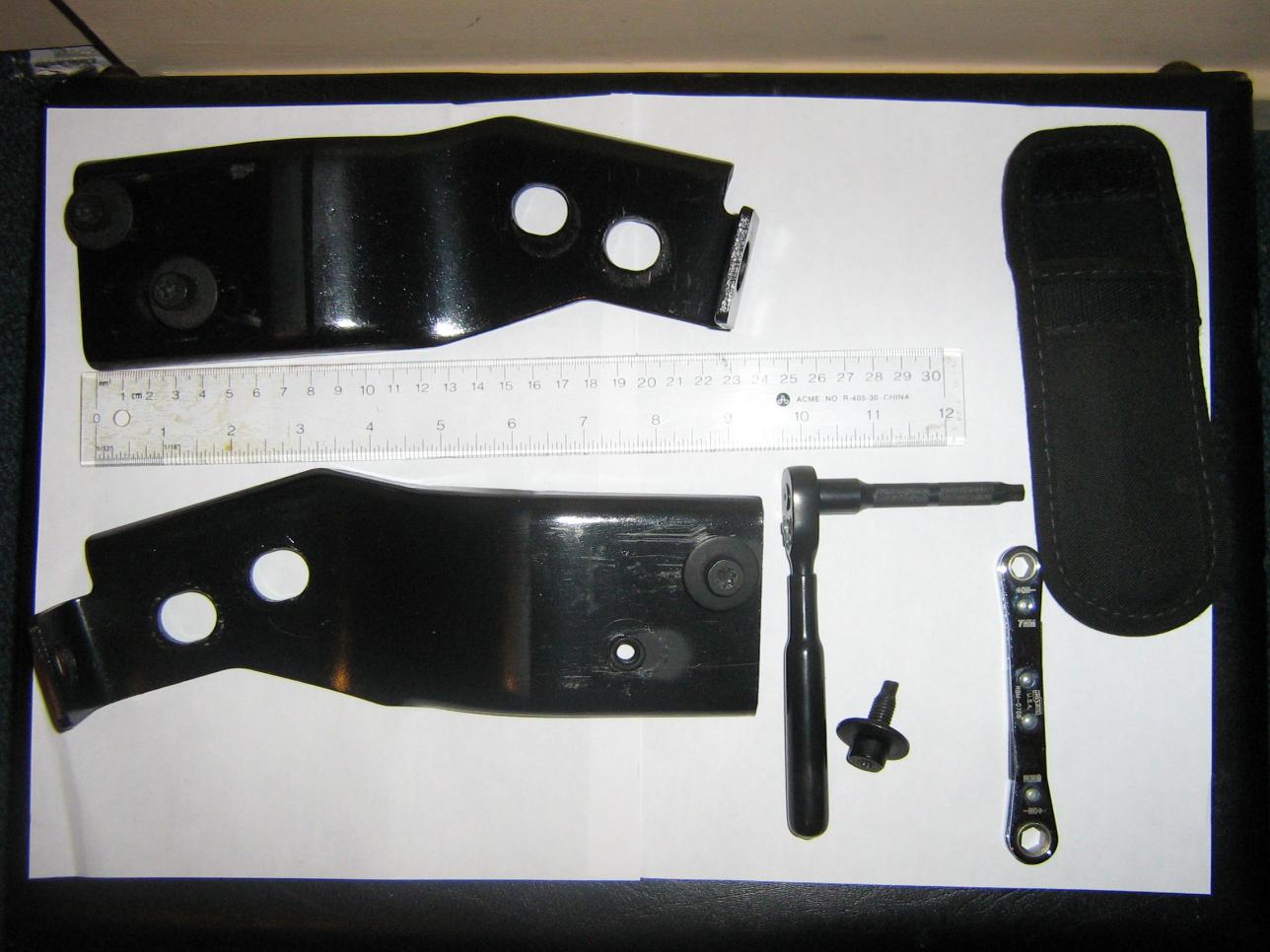

Note ruler in 1 pic (approx length 9 in )
Bracket thickness 1/8 in
click twice for closeup image
