Radio/Heater buttons

[jlobo103]

I can't remember. Are the buttons on the radio and heater lit or just indirect lighting from the little glow light on the bottom of the interior mirror? If they are lit does anyone know what fuse controls them?
This will be on a 96.

Thanks

jim



[Baldie88]

I don't know about a 96 but on my 88, the buttons are lite from behind the button. The light on the bottom of the mirror illuminates the window controls on the console. I'm not sure about the fuse.

Ron
"Baldie88"



[ecss]

I can't remember. Are the buttons on the radio and heater lit or just indirect lighting from the little glow light on the bottom of the interior mirror? If they are lit does anyone know what fuse controls them?

If you're asking about the back lighting when the headlight switch is in Park or Head,
the incandescent power driver in combination with the headlight dimmer switch
controls the back lighting for the radio, HVAC control head and PRND shifter
indicator for a auto trans. driver info center, power window switch, door courtesy
lamp. lighted rear view mirror and some others.

Make sure the dimmer switch is at the full brightness position.

If any none of the above lights are working the incandescent power
driver is bad. It's a heat sink with a transistor mounted on it. Located
middle of the steering column bolted to a bracket on the left side
of the steering column.

If some of the back lights work verify Fuse 11, 12 and 13 are good in the
passenger side end of dash fuse panel.

Here's a picture of what it looks like.

Amazon.com: ACDelco D1509B Instrument Panel Dimmer Switch: Automotive

Some people have mentioned they replaced the transistor with a 2n3055 from Radio Shack
which costs $2.99 Part # 276-2041.

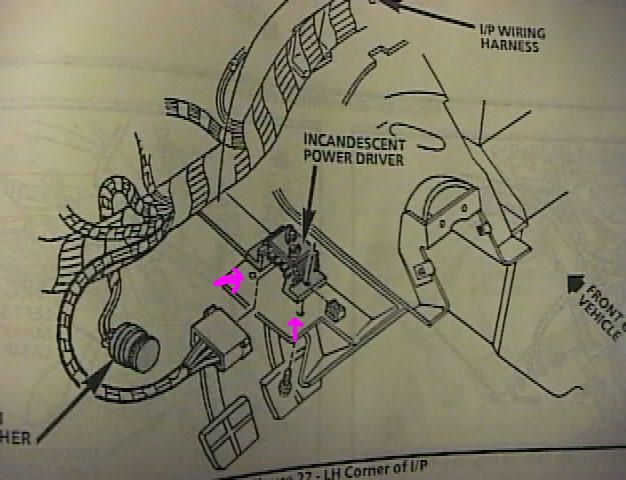

Here's a picture of the location for the incandescent power driver.



[jlobo103]

Thanks for the info guys. Will check out those fuses cause all the lights work except for the radio, climate control buttons and the light on the shifter.
Again, thanks. This has been driving me crazy.

Jim



[ecss]

Thanks for the info guys. Will check out those fuses cause all the lights work except for the radio, climate control buttons and the light on the shifter.

Fuse #13 CNSL ILLUM 5 amp fuse provides the voltage for Radio Control Head, C68 HVAC Control Head, PRND indicator and DIC button back lighting.



[jlobo103]

Fuse #13 CNSL ILLUM 5 amp fuse provides the voltage for Radio Control Head, C68 HVAC Control Head, PRND indicator and DIC button back lighting.

Thank you very much. I will try no 13 cause that sounds like the one.

Jim



[jlobo103]

Fuse #13 CNSL ILLUM 5 amp fuse provides the voltage for Radio Control Head, C68 HVAC Control Head, PRND indicator and DIC button back lighting.

Thank you very much. Fuse #13 did the trick! Have lights again.
Jim
