for those that don't THINK..

grumpyvette

Well-known member
Joined
Apr 17, 2001
Messages
841
Location
Loxahatchee, FL, Palm Beach co
for those guys that don't THINK..they need to spend the cash for a lakewood scatter shield and think its ok to race......look thru these pictures

http://forums.hybridz.org/showthread.php?p=777548#post777548

then think what youll do when your cut clean off at the shins if the clutch/flywheel decides to come apart, I can absolutely garauntee that frame was harder to cut thru than your legs would have been!!


BTW
http://www.jegs.com/webapp/wcs/stores/servlet/product_10001_10002_24568_-1
http://store.summitracing.com/partd...t=LAK-15000&N=700+4294822099+115&autoview=sku
theres DOZENS of differant models , SIZES ETC. but LAKEWOODS about the best known brand and JEGS AND SUMMIT HAVE THEM

Joined
Nov 11, 2001
Messages
5,979
Location
SouthCentral Ontario
Corvette
www.67HEAVEN.com
Amen to that.

With the amount of torque these cars are capable of generating, I wouldn't run a stick without one. I've used a Lakewood Scattershield and Block Plate on my car for 39 years.

:beer

Joined
Nov 11, 2001
Messages
5,979
Location
SouthCentral Ontario
Corvette
www.67HEAVEN.com
Jane Ann,

Our cars came from the factory with an aluminum bellhousing. That's the piece that surrounds the clutch/flywheel on a standard shift car, and mates the transmission with the engine.

The advantage of aluminum is light weight. The big DISadvantage is what happens to it when a clutchplate or flywheel lets go and decides to leave the premises.

In our cars, our legs are right beside the bell housing. I removed the aluminum bellhousing and replaced it with a very heavy steel scattershield (probably 7 or 8 times heavier than the aluminum piece). The block plate that I mentioned is only a few millimetres thick and fits behind the engine block before the flywheel/clutch/scattershield are installed. Its function is to save the block if pieces start flying.

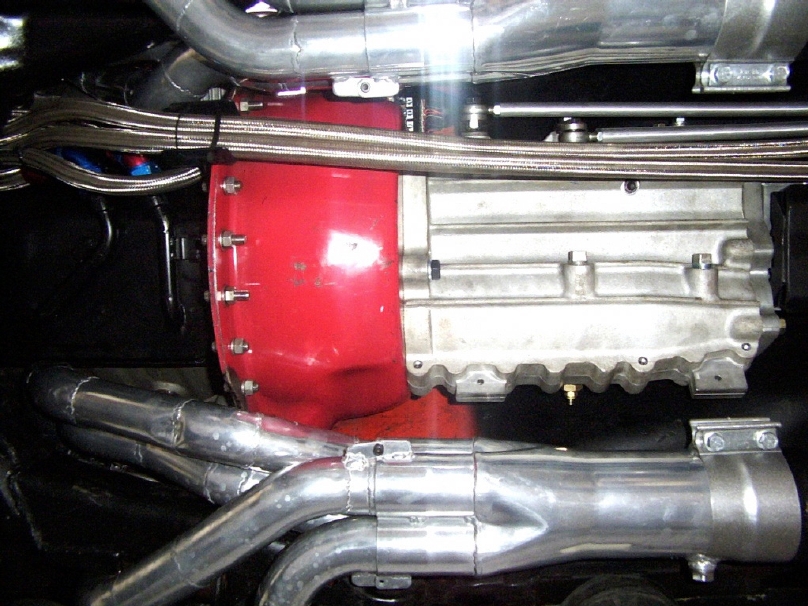

The red piece is a scattershield (looking up from under the car - not my car).

Joined
Nov 11, 2001
Messages
5,979
Location
SouthCentral Ontario
Corvette
www.67HEAVEN.com
By the way, you may be curious about why the clutch or flywheel would detonate. There are a variety of reasons and/or faults that can cause this, but imagine the forces generated when you're sitting revving to 5 - 6 - or 7,000 rpm and you pop the clutch. The clutch pressure plate slams the disc into the spinning flywheel and exerts mountains of torque down the driveline to the wheels.

Now imagine what happens when you're running large tires (maybe even slicks) that refuse to spin easily. The potential for problems is multiplied. :W

There's a lot going on inside that bellhousing or scattershield......and it's a good idea to keep it all inside. ;)


XLR8

Gone but not forgotten
Joined
Jun 23, 2004
Messages
6,662
Location
Mississippi Gulf Coast
Corvette
2003 AE Convertible, 1998 LCRM Convertible
WHOA! Thanks for the explanation, Bob. I understand more now.

I recall photos of a twisted driveshaft posted at one time. At least I THINK that's what it was. Is that related to this issue or a horse of a different color?

Sorry, Bob. Don't mean to sound completely ignorant but I have limited enough knowledge that it's even hard to form the questions. :L

And sorry too Grumpy for getting off on a tangent - just trying to understand the issues.

:w

Joined
Nov 11, 2001
Messages
5,979
Location
SouthCentral Ontario
Corvette
www.67HEAVEN.com
I recall photos of a twisted driveshaft posted at one time. At least I THINK that's what it was. Is that related to this issue or a horse of a different color?

The driveline will fail at the weakest point.............just like a chain. ;)

So, it that case, the driveshaft twisted, although if memory serves, it was actually one of the half-shafts.

You know what a half-shaft is, right? :D

Joined
Nov 11, 2001
Messages
5,979
Location
SouthCentral Ontario
Corvette
www.67HEAVEN.com
C1 (1953-62) Corvettes are really known as "solid axle" Corvettes. That's because they had a similar setup to typical cars of the day wherein the rear axle was solid from one rear wheel to the other.

In 1963, along came the C2 (midyear) Corvettes with independent rear suspension (no solid axle). Not only did they have a driveshaft between the transmission and the rear differential (that big thingy in the centre of the car between the rear wheels ;) ), but they also received two additional shafts; one between each rear wheel and the differential. These "half-shafts" looked like about half the length of the driveshaft, thus the name. :)



The independent rear suspension comes from the fact that each half-shaft (just like the driveshaft) has a universal joint at each end, allowing either wheel to move in response to road conditions "independently" from the other wheel...........which of course would not be possible with a solid axle.

Now, it's my turn to apologize to grumpyvette for getting way off topic.

;)


XLR8

Gone but not forgotten
Joined
Jun 23, 2004
Messages
6,662
Location
Mississippi Gulf Coast
Corvette
2003 AE Convertible, 1998 LCRM Convertible
Okay... thanks for answering my questions 67... I say questions because I've also wondered about that "solid axle" comment before.

Now I know. :upthumbs

Apologies grumpyvette - we now return you to your regular scheduled thread. :D

:wJane Ann


grumpyvette

Well-known member
Joined
Apr 17, 2001
Messages
841
Location
Loxahatchee, FL, Palm Beach co
no problem guys were here to talk vettes/engines ETC.

http://www.jegs.com/webapp/wcs/store...10002_24568_-1

http://store.summitracing.com/partde...5&autoview=sku

theres DOZENS of differant models , SIZES ETC. but LAKEWOODS about the best known brand and JEGS AND SUMMIT HAVE THEM

"Should I be concerned?"

you tell me!
if theres about one chance in several hundred or even one chance in several thousand that youll loose your legs of feet if the flywheel or clutch explodes (and the more wear and rpms the greater the chances) is spending under $400 worth it to you to make it almost a non-issue (safety wise) if its does ever happen??
lets put it this way, theres several hundered times more likelyhood of that clutch exploding than you ever hitting the lotto but youve bought a lotto ticket right??

or put another way, Ive seen that happen about 6 times in 35 years, chances are not high, but I saw one car almost completly cut in half when it happended.......your choice, but ID sure use a lakewood bellhousing if I had a manual trans and EVER spun the engine over about 5500rpm
ALL my race cars had and have them, its a darn small price to still have feet if it does come appart
